Product

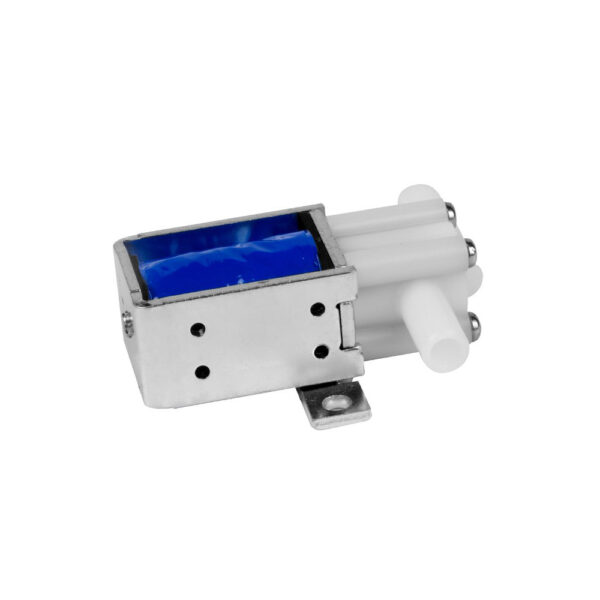

Dc 12V 2 Ways Normally Closed Micro Liquid Valve
- Model: NJPSF2637-4
- Rated voltage: 12.0V
- Operating voltage: 10.8~14.4V
- Power: 3.6W (Approx)
- Exhaust time<900ml/min
- Current: 300mA
- Flow rate: 0~100LPM
- Insulation grade: A
- Structure: N/C, Two position, Two ways
- Max. Temperature: 100℃
Note: Please consult us for custom specifications.
Social Share :
Description
Parameters:
- Model: NJPSF2637-4
- Rated voltage: 12.0V
- Operating voltage: 10.8~14.4V
- Power: 3.6W (Approx)
- Exhaust time<900ml/min
- Current: 300mA
- Flow rate: 0~100LPM
- Insulation grade: A
- Structure: N/C, Two position, Two ways
- Max. Temperature: 100℃
Note: Please consult us for custom specifications.
Applications:
- Drinking machine
- Coffee machine

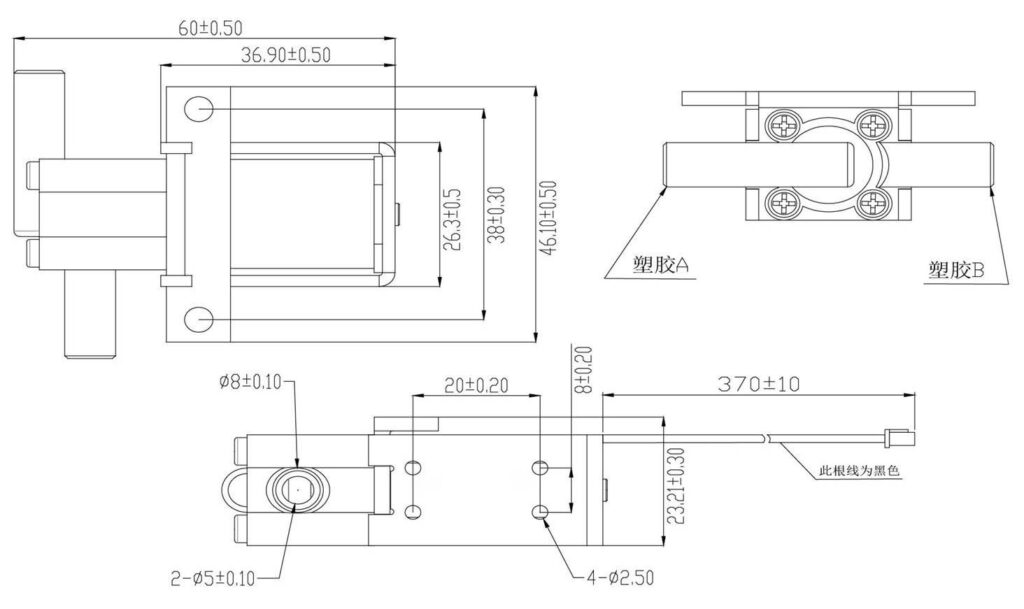

Dimension:
