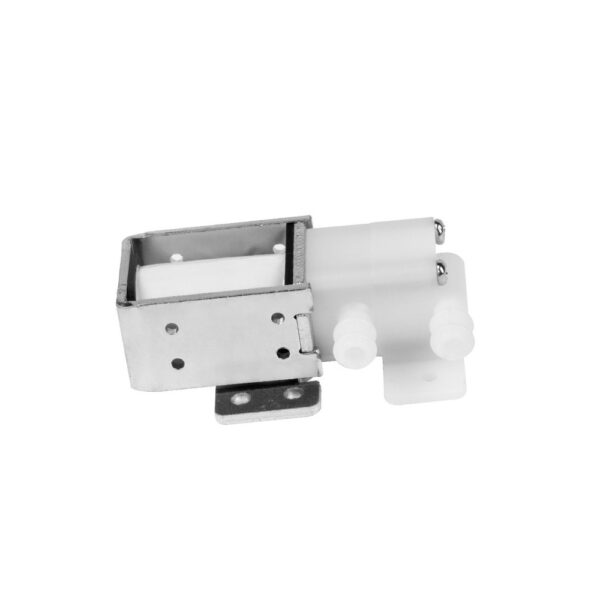

DC 24V Miniature Solenoid Water Valve for Drinking Machine
- Model: NJPSF2637-2
- Rated voltage: 24.0V
- Operating voltage: 21.6~26.4V
- Power: 2.88W (Approx)
- Exhaust time<700ml/min
- Current: 120mA
- Flow rate: 0~400LPM
- Insulation grade: A
- Structure: N/O、N/C, Two position, Three ways
- Max. Temperature: 100℃
Note: Please consult us for custom specifications.
Social Share :
Description
Parameters:
- Model: NJPSF2637-2
- Rated voltage: 24.0V
- Operating voltage: 21.6~26.4V
- Power: 2.88W (Approx)
- Exhaust time<700ml/min
- Current: 120mA
- Flow rate: 0~400LPM
- Insulation grade: A
- Structure: N/O、N/C, Two position, Three ways
- Max. Temperature: 100℃
Note: Please consult us for custom specifications.
Applications:
- Massager
- Aromatherapy machine
- Drinking machine
- Coffee machine
- Tea machine

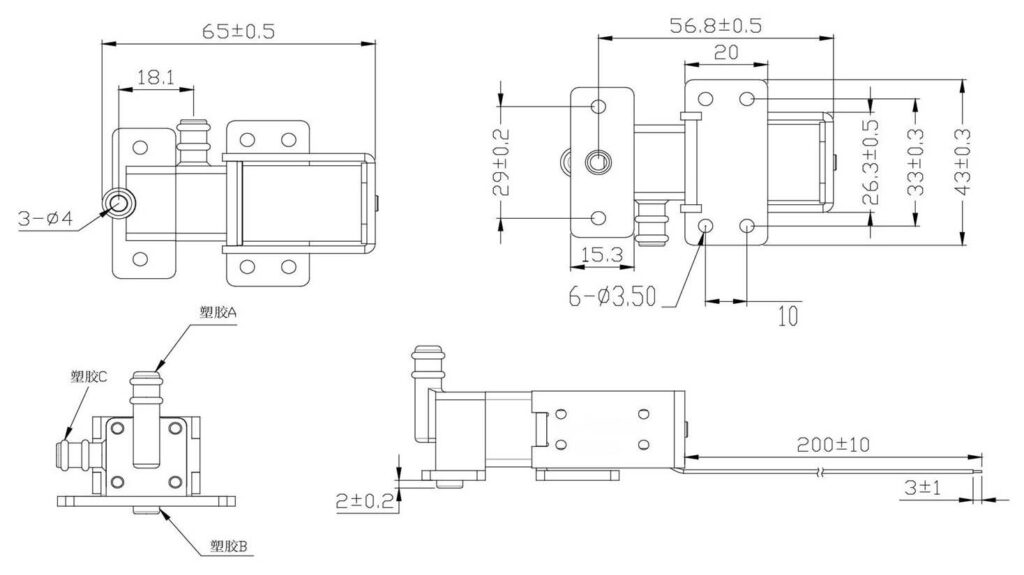

Dimension:
