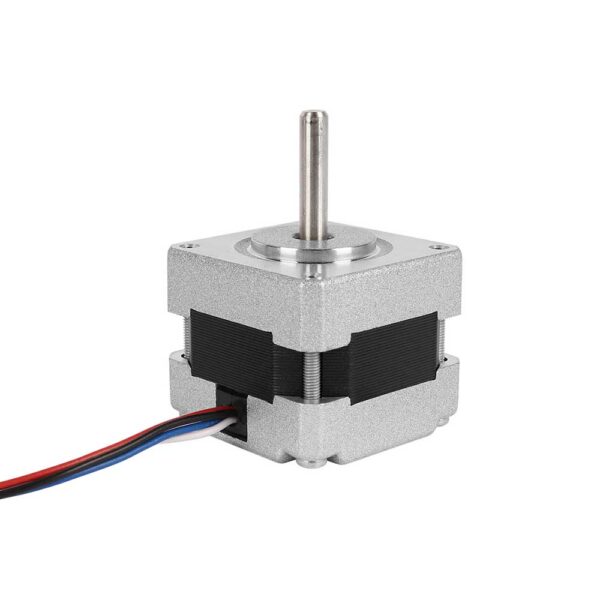

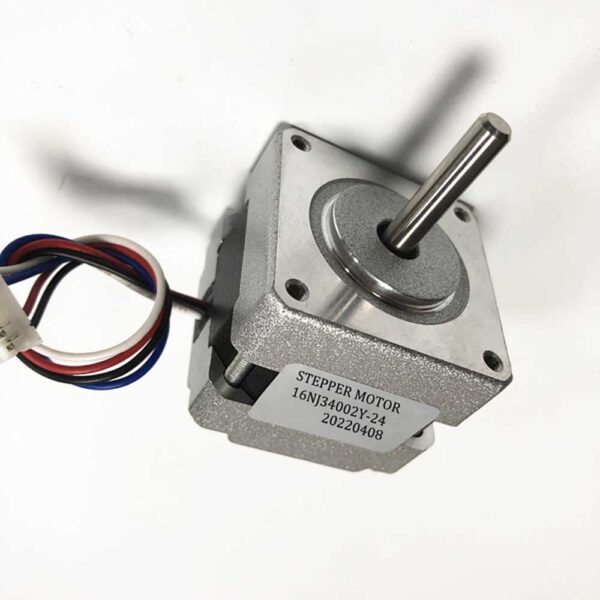

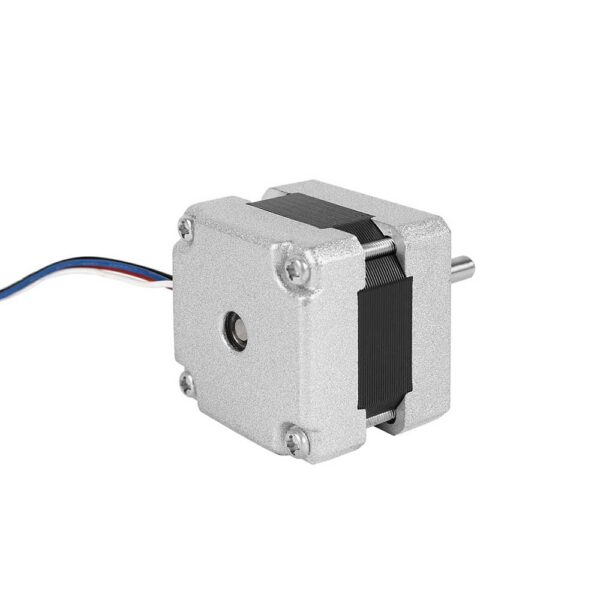

Nema16 Stepper Motor 16NJ34002Y-24 For Welding equipment
- Model: 16NJ34002Y-24
- Step angle: 1.8 degree
- Phase: 2
- Rated voltage: 2.03V
- Rated current: 0.7A
- Phase resistance: 2.9Ω
- Phase inductance:4.2mH
- Holding torque: 120mN.m
- Detent torque: 12mN.m
- Rotor Inertia: 20g.cm²
- Weight: 0.18kg
Social Share :
Description

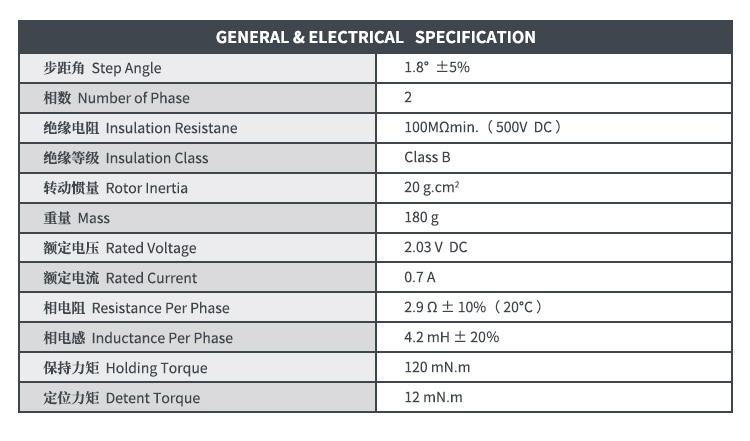

Parameters:
- Model: 16NJ34002Y-24
- Step angle: 1.8 degree
- Phase: 2
- Rated voltage: 2.03V
- Rated current: 0.7A
- Phase resistance: 2.9Ω
- Phase inductance:4.2mH
- Holding torque: 120mN.m
- Detent torque: 12mN.m
- Rotor Inertia: 20g.cm²
- Weight: 0.18kg
Applications:
- 3D Printer
- CNC
- Robotics
- Textile machines
- Welding equipment
- Gaming machines

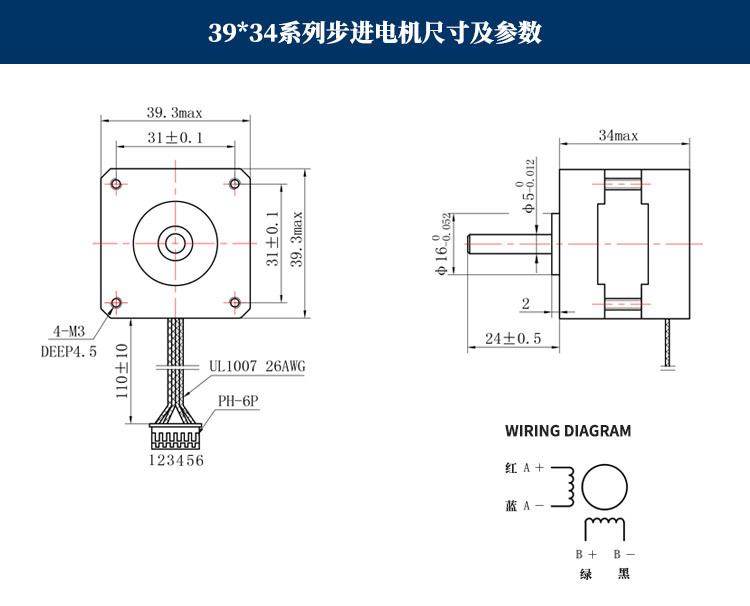

Dimension:
