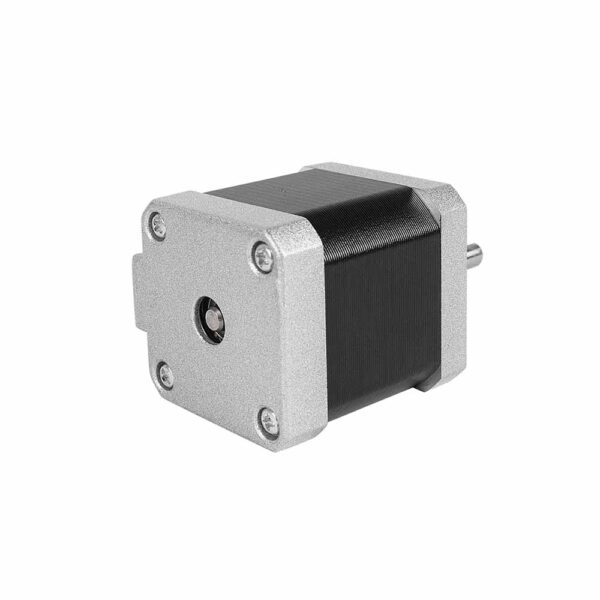

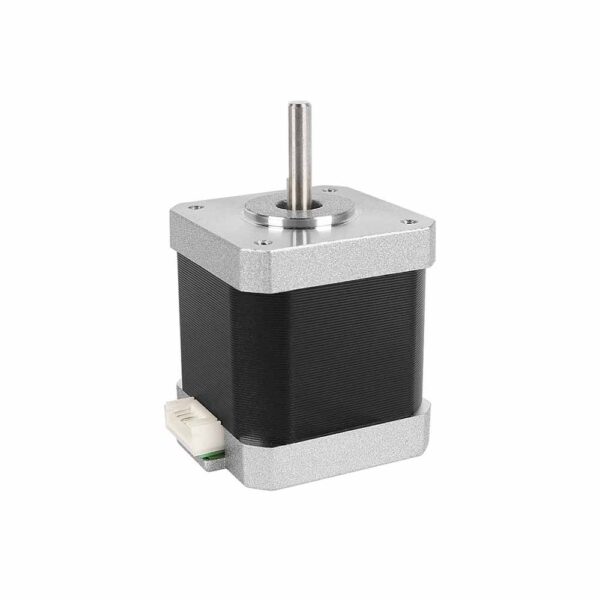

Nema17 Stepper Motor 17NJ48002-22B For Welding Equipment
- Model: 17NJ48002-22B
- Step angle: 1.8 degree
- Phase: 2
- Rated voltage: 3.06V
- Rated current: 1.7A
- Phase resistance: 1.8Ω
- Phase inductance:3.8mH
- Holding torque: 560mN.m
- Detent torque: 24mN.m
- Rotor Inertia: 82g.cm²
- Weight: 0.36kg
Social Share :
Description
Parameters:
- Model: 17NJ48002-22B
- Step angle: 1.8 degree
- Phase: 2
- Rated voltage: 3.06V
- Rated current: 1.7A
- Phase resistance: 1.8Ω
- Phase inductance:3.8mH
- Holding torque: 560mN.m
- Detent torque: 24mN.m
- Rotor Inertia: 82g.cm²
- Weight: 0.36kg
Applications:
- 3D Printer
- CNC
- Robotics
- Textile machines
- Welding equipment
- Gaming machines
Dimension:
